TideGate Drain Collection

TideGate Collection

TideGate Drain Collection

Solid-Brass Basin Drains. Heavy-Gauge Copper Floor Drains. Built to Last.

Solid Brass & Solid Copper Construction

Finish-Matched to Shoreline Faucets

Engineered for Wet Installations

Three Designer Finishes

TideGate Drain Collection

The TideGate Collection

The TideGate Drain Collection brings solid-brass pop-up basin drains and heavy-gauge copper floor drains to the Shoreline plumbing lineup. From low-profile basin pop-ups to 600mm linear shower drains, every TideGate fixture is engineered for the same long-term reliability as our HarborFlow, TideStream, BayCrest, and RainCrest collections — and finished to match — backed by our lifetime limited warranty.

Solid Brass & Solid Copper Construction

Pop-up basin drains are forged from solid brass; floor drains are built from solid copper (4mm standard, 9mm heavy-duty). Both are far more corrosion-resistant than the chrome-plated plastic or zinc-alloy drains commonly packaged with budget fixtures.

Finish-Matched to Shoreline Faucets

Every TideGate drain is finished to match our faucet lineup — Matte Black, Brushed Nickel, and Brushed Gold — using the same plating and brushing processes, so basin drains coordinate visibly with HarborFlow faucets and floor drains read as a matched set with RainCrest showers.

Engineered for Wet Installations

Floor drains use solid copper bodies from 4mm to 9mm thick, rated for decades of use in showers, balconies, laundry rooms, and commercial baths where thinner cast drains would eventually fail.

Three Designer Finishes

Matte Black, Brushed Nickel, and Brushed Gold — color-matched to the full Shoreline plumbing lineup so drains and faucets always coordinate.

Lifetime Limited Warranty

Every TideGate drain is backed by the same lifetime limited warranty that covers the rest of the Shoreline plumbing lineup — the warranty the installer actually sees on the spec sheet.

TideGate Drain Collection

Six Distinctive Designs

Every model in the collection is built to the same rigorous construction standard — choose the silhouette that fits your space.

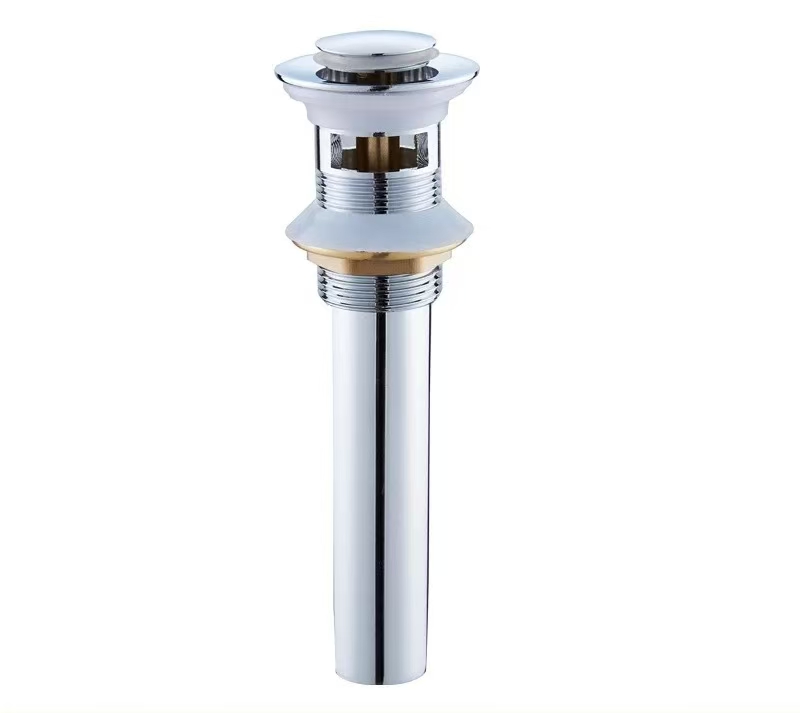

Newport

D02

Classic Pop-Up Drain

Sink Pop-Up Drain · Pop-Up

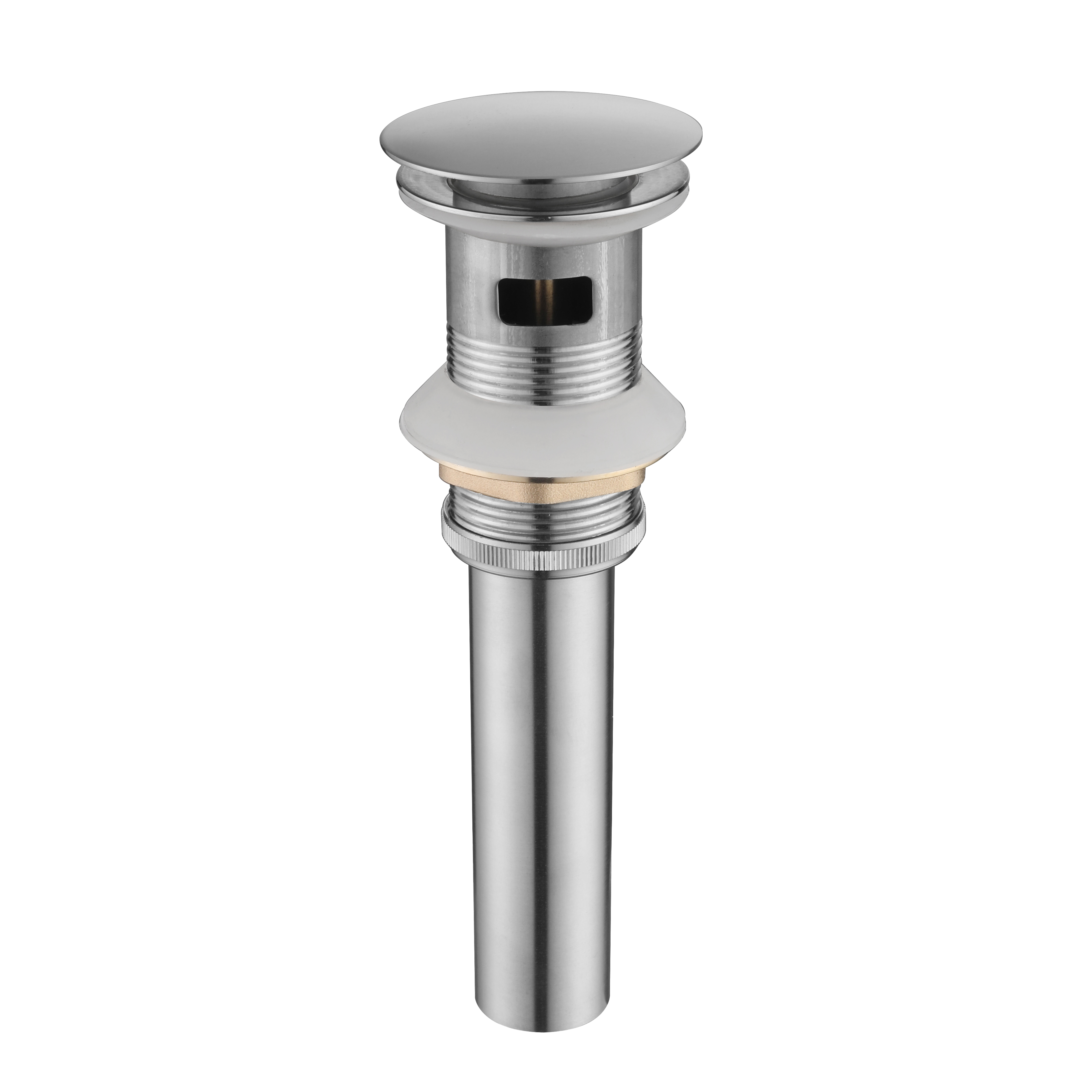

Kennebunk

D011B

Modern Low-Profile Pop-Up

Sink Pop-Up Drain · Pop-Up

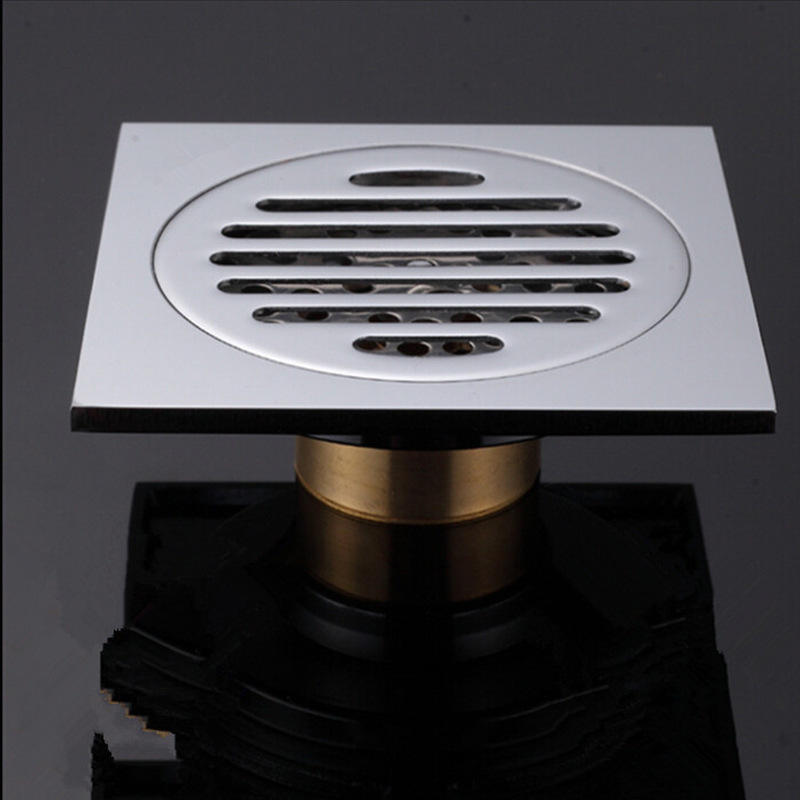

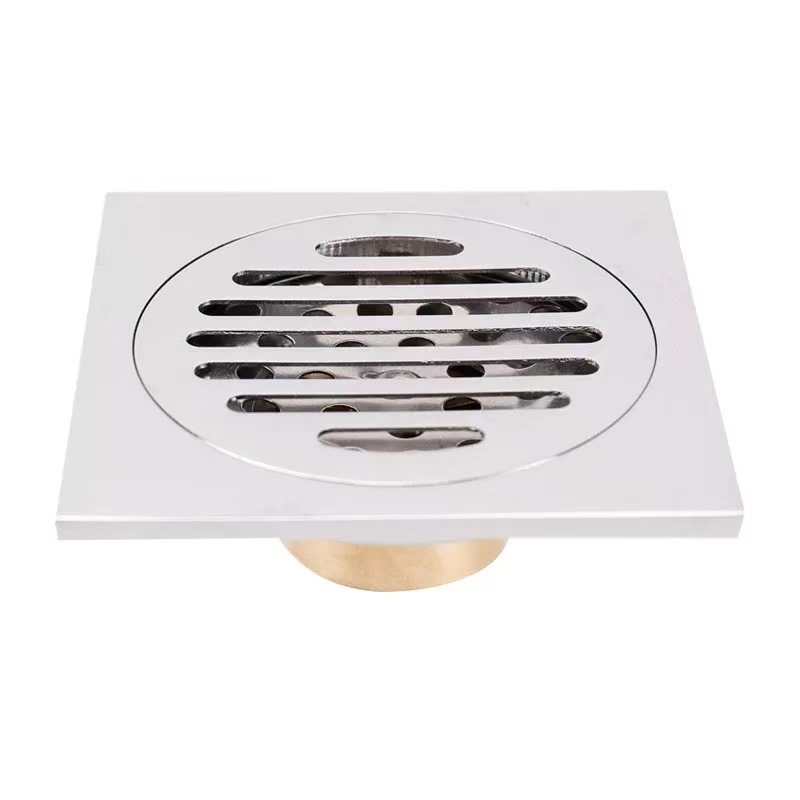

Brunswick

DS8100

Square Floor Drain

Square Floor Drain · Floor Drain

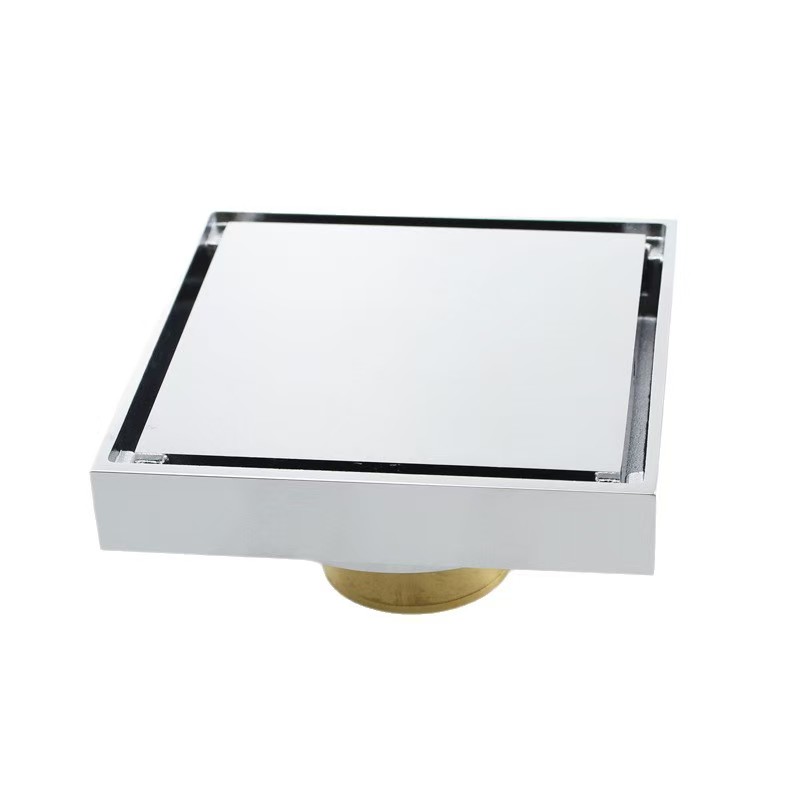

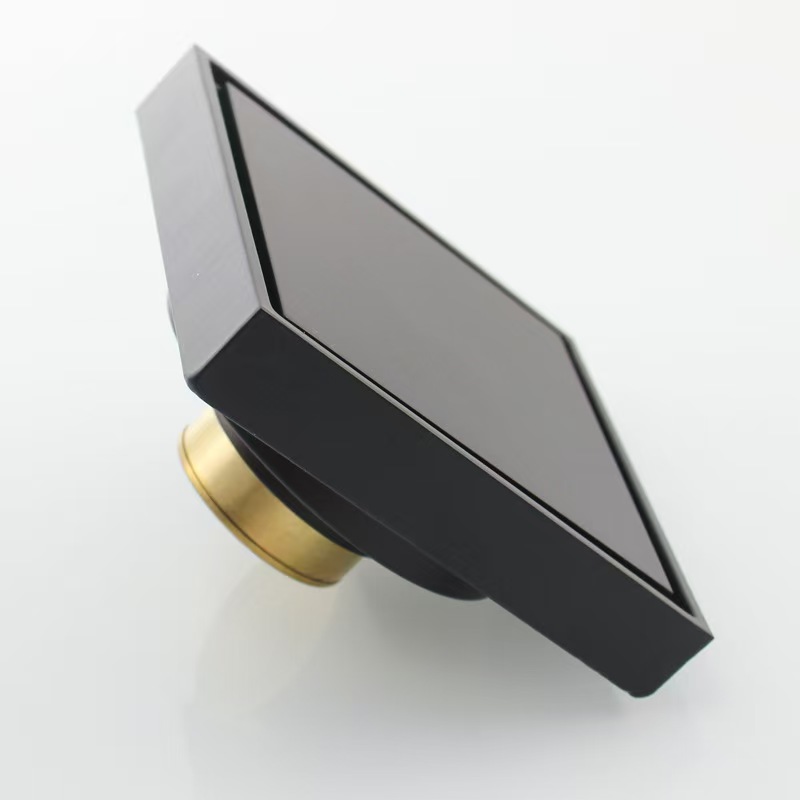

Gloucester

DS8101

Heavy-Duty Square Floor Drain

Square Floor Drain · Heavy-Duty

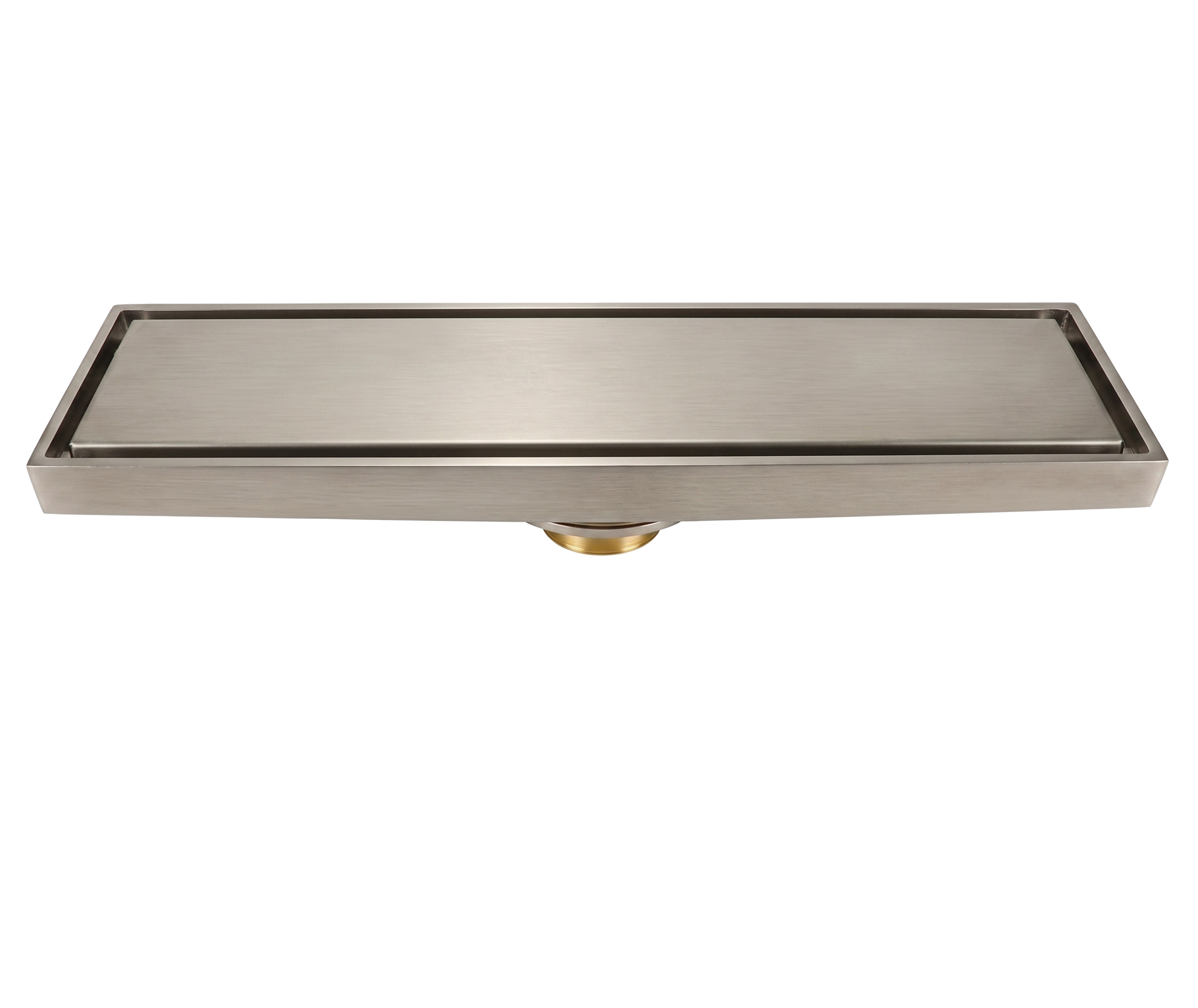

Nantasket

DS8104

Linear Floor Drain (Smooth)

Linear Floor Drain · Linear Drain

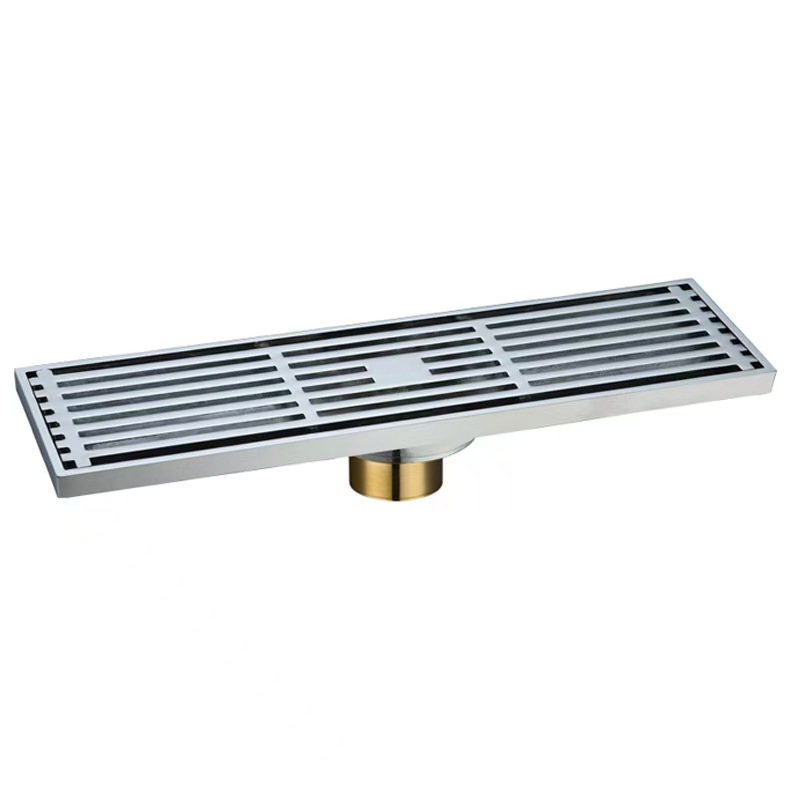

Madaket

DS8105

Linear Floor Drain (Ribbed)

Linear Floor Drain · Linear Drain

TideGate Drain Collection

Finishes & Specifications

Three Designer Finishes

Matte Black

Bold, modern, and fingerprint-friendly. Works beautifully in contemporary, industrial, and coastal-modern bathrooms.

Brushed Nickel

The most versatile finish in the collection. A warm silvery tone that pairs with virtually every fixture and hardware style.

Brushed Gold

Warm, luxurious, and unmistakably refined. A standout choice for transitional, traditional, and glam-modern bathrooms.

Shared Technical Specifications

InstallationDrop-in sink basin (with overflow)

MechanismPush-button pop-up

MaterialSolid brass body

SurfaceChrome-plated / brushed finish

Tailpiece Length7-7/8 inches

Top Diameter2-3/8 inches

Connection1-1/4" standard US thread

TideGate Drain Collection

Warranty & Care Guide

Lifetime Limited

Structural Warranty

Shoreline Brands warrants TideGate drains to be free from defects in material and workmanship under normal residential use for as long as the original purchaser owns the home.

Lifetime Limited

Finish Warranty

Finishes are warranted against tarnishing, corrosion, and discoloration under normal residential use for the life of the original homeowner.

Coverage

✓Drains are warranted free from manufacturing defects in materials, machining, and assembly for the life of the original purchaser.

✓Finishes are warranted against tarnishing, peeling, corrosion, and discoloration under normal residential use.

✓Brass pop-up mechanisms are warranted to operate smoothly for the life of the product when properly maintained.

✓Copper floor drain bodies are warranted against corrosion failure under normal residential installation conditions.

Exclusions

✗Commercial, industrial, and rental installations require a separate commercial warranty — contact us for coverage details.

✗Damage caused by misuse, abuse, improper installation, or improper rough-in is not covered under this warranty.

✗Damage from harsh chemicals, abrasive cleaners, scouring pads, or acidic drain cleaners voids the finish warranty.

✗Normal wear on consumable parts such as O-rings and washers is not covered under this warranty.

✗Labor costs for removal, reinstallation, and any resulting water damage are the responsibility of the homeowner.

Care Guide

Routine Cleaning

•Wipe drain tops with a soft, damp cloth and mild soap.

•For pop-up drains, lift and rinse the stopper weekly to clear hair and soap buildup.

•For floor drains, pull the grate monthly and rinse out accumulated debris.

•Dry with a soft cloth to maintain the finish’s original luster.

Do Not Use

•Abrasive cleaners, scouring pads, or steel wool on the finished surface.

•Chemical drain cleaners (Drano, Liquid-Plumr, etc.) — these can attack the finish and the mechanical parts of pop-up drains.

•Acidic bathroom cleaners directly on brushed or plated surfaces.

Pop-Up Drain Care

•Lift the stopper and inspect the pivot rod annually for wear.

•Clean the overflow channel with a small brush every few months to prevent clogs.

•Apply a drop of plumber’s silicone grease to the pivot rod once a year.

Floor Drain Care

•Flush floor drains with warm water monthly to keep the trap primed and odor-free.

•Inspect the waterproofing membrane around the drain body during remodels — compromised waterproofing, not drain failure, is the leading cause of below-slab leaks.

•Avoid pouring grease, paint, or construction slurry down floor drains.
