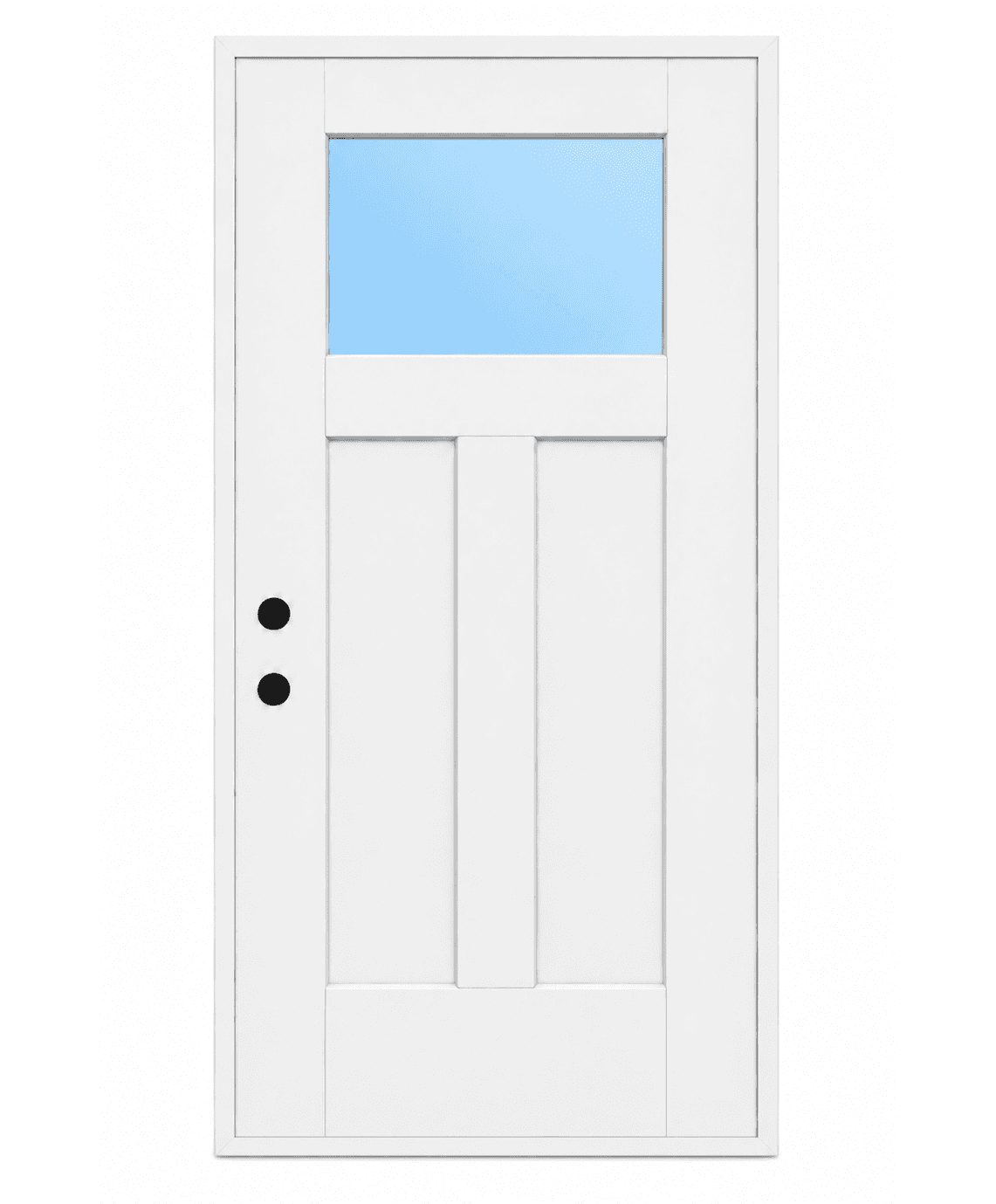

Saugatuck White

HarborGate 1-Lite Shaker

Saugatuck

Model 6.1

The three-panel Shaker with a Low-E lite in the top panel — a single front or side door with daylight.

The Saugatuck takes the Frankfort's three-panel Shaker layout and glazes the top panel with a Low-E insulated lite, so a single door still brings daylight into the entry. Two tall panels below keep the Shaker proportions. It is the same Shaker door that sits at the center of the Manistee entry system, glazed Low-E — the right door for a front entry without room for sidelites, a side entry, or a walk-out. Standard double-bore prep with a 2¾-inch backset for a HarborForge handleset or smart deadbolt, prehung in a primed PVC jamb, factory-painted White or Black.

Prehung Entry DoorSingle Door

Color: White

2 available

Swatches and finishes shown are representative — actual color and texture may vary slightly. Request a sample to confirm before final selection.

See It in Your Space

Currently shown in White — change the color above to see other options.

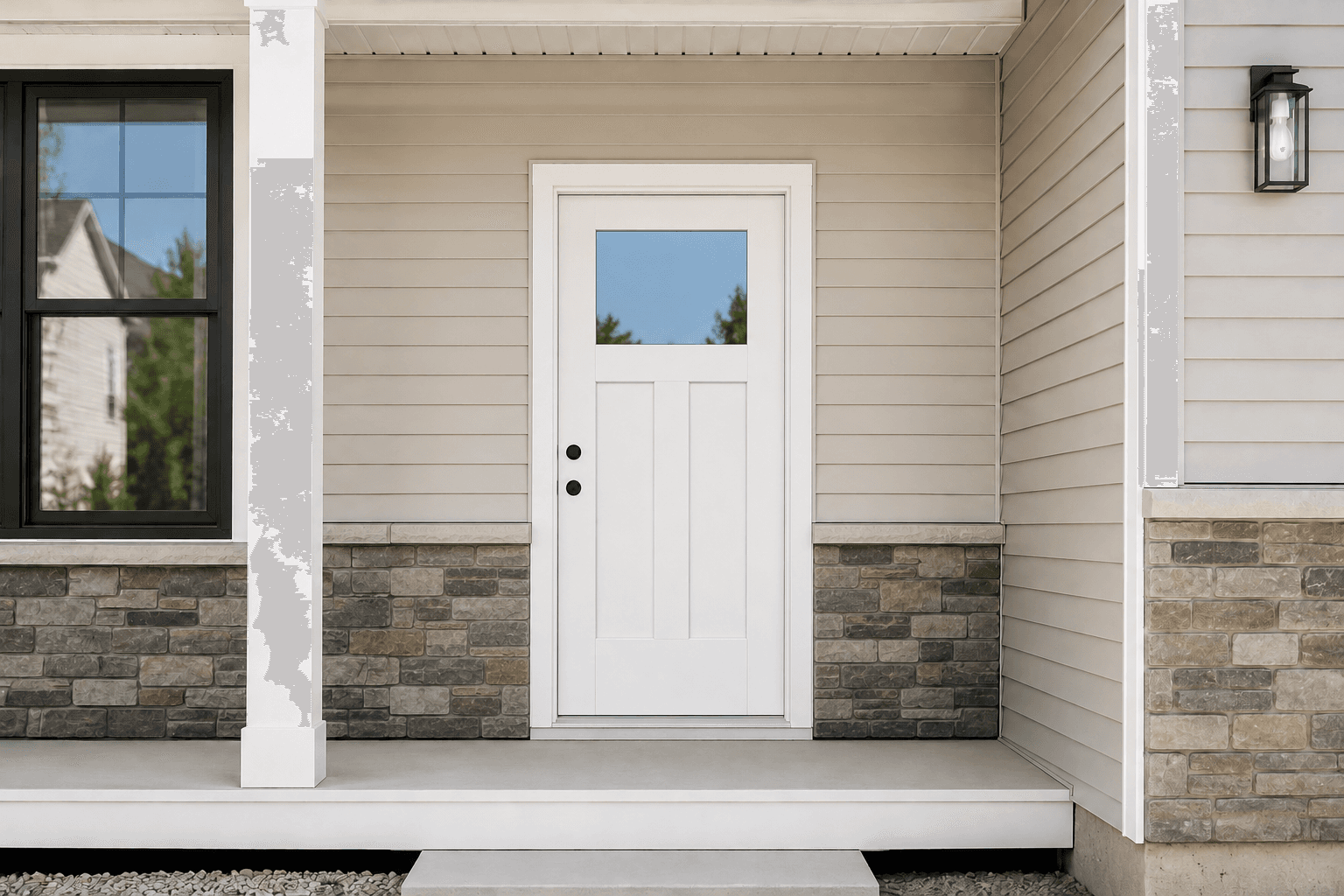

Saugatuck installed in White

Built for Performance. Designed for Life.

Daylight in a Single Door

One Low-E lite in the top panel brings light into the entry where there is no room for sidelites or a transom.

Deadbolt-Ready

Standard double-bore prep — a HarborForge handleset or smart deadbolt installs directly, no field boring.

Saugatuck Specifications

ConfigurationSingle prehung door — slab and jamb, no sidelites or transom
GlassLow-E insulated clear glass — one lite in the top panel
PanelsTwo tall Shaker panels below the lite
CorePolyurethane foam
Bore PrepDouble bore — 2⅛″ dia., 5½″ spacing, 2¾″ backset; mortised edge latch prep, deadbolt prep, 1″ × 2¼″ strike prep
Door Slab36″ W × 80″ H × 1¾″ thick
Construction2 mm fiberglass skin on both faces over a PVC + LVL stile-and-rail frame
FinishFactory-painted — White (RAL 9003) or Black (RAL 9005)
HingesBall-bearing, black
JambPrimed PVC, 6-9/16″ depth
Threshold & Sill7⅝″ black threshold, adjustable mill-finish sill with dark cap
WeatherstripCompression
SwingLeft-hand or right-hand inswing
Brick MoldOptional 2″ PVC brick mold
PackagingPrehung unit, cartoned
