Ludington White

HarborGate Full-Lite, Wide-Stile Entry

Ludington

Model 4.1

A full lite of clear glass framed by wider stiles and rails, with full-lite sidelites and a transom.

The Ludington is the Leland's more traditional sibling: a full lite of clear insulated glass set inside wider painted stiles and rails, so the door keeps a visible frame around the glass rather than running it to the edge. The same two 14-inch full-lite sidelites and full-width transom complete the entry system in one primed PVC jamb. Factory-painted White or Black, black threshold and hinges, double-bore prep for a HarborForge handleset and deadbolt.

Prehung Entry DoorTransom + Sidelites

Color: White

2 available

Swatches and finishes shown are representative — actual color and texture may vary slightly. Request a sample to confirm before final selection.

See It in Your Space

Currently shown in White — change the color above to see other options.

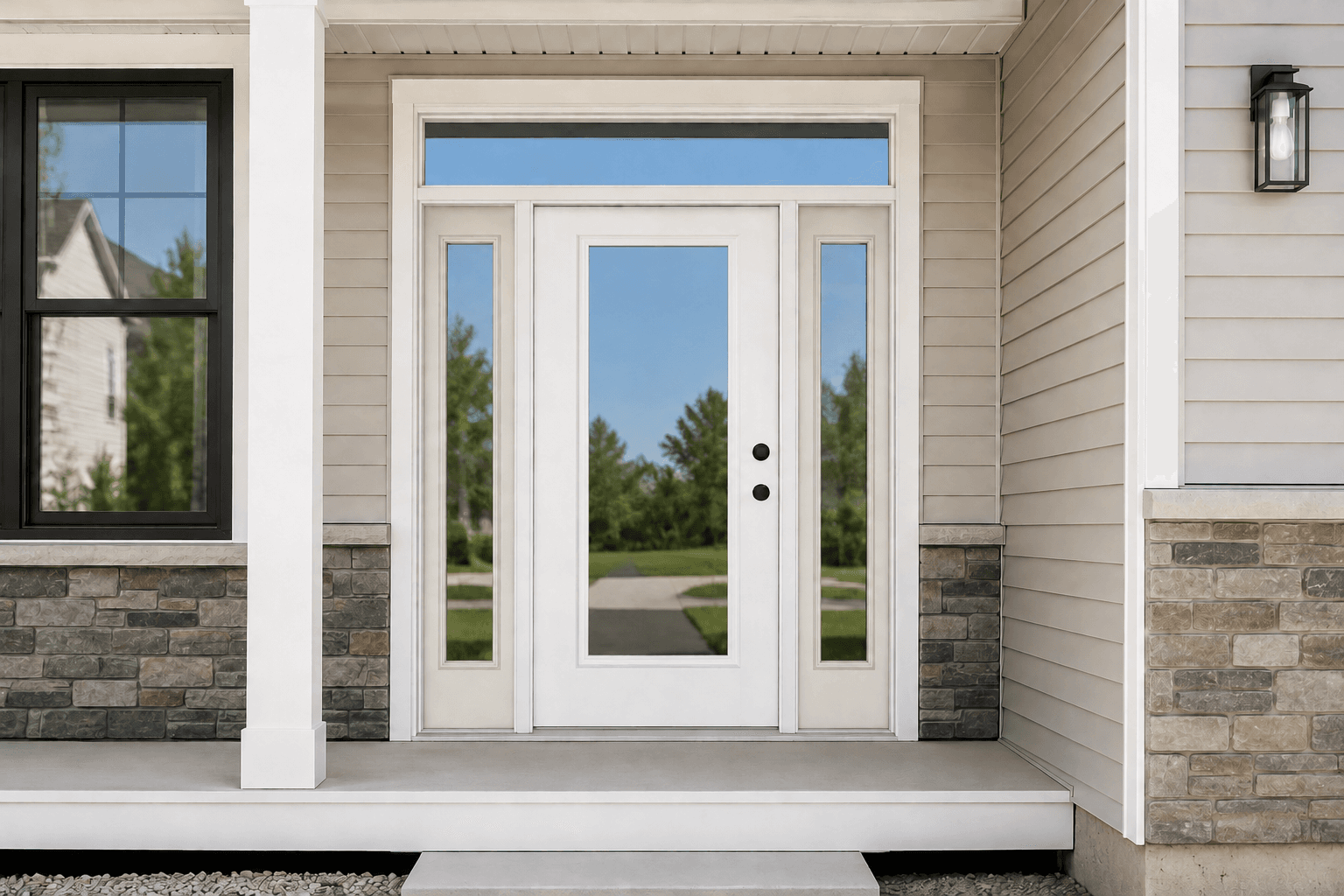

Ludington installed in White

Built for Performance. Designed for Life.

Framed Full Lite

Wider stiles and rails give the glass a visible painted border — a full-lite door that still reads as a door, not a window.

Complete Entry System

Slab, two 14″ sidelites, and transom arrive assembled in one jamb — a single unit to set, not three openings to align.

Ludington Specifications

ConfigurationEntry system — door slab, two 14″ full-lite sidelites, full-width transom, one jamb
GlassClear insulated glass — full lite in the slab, full-lite sidelites, transom
Lite FrameWide painted stiles and rails framing the lite
CorePolyurethane foam
Bore PrepDouble bore — 2⅛″ dia., 5½″ spacing, 2¾″ backset; mortised edge latch prep, deadbolt prep, 1″ × 2¼″ strike prep
Door Slab36″ W × 80″ H × 1¾″ thick
Construction2 mm fiberglass skin on both faces over a PVC + LVL stile-and-rail frame
FinishFactory-painted — White (RAL 9003) or Black (RAL 9005)
HingesBall-bearing, black
JambPrimed PVC, 6-9/16″ depth
Threshold & Sill7⅝″ black threshold, adjustable mill-finish sill with dark cap
WeatherstripCompression
SwingLeft-hand or right-hand inswing
Brick MoldOptional 2″ PVC brick mold
PackagingPrehung unit, cartoned
