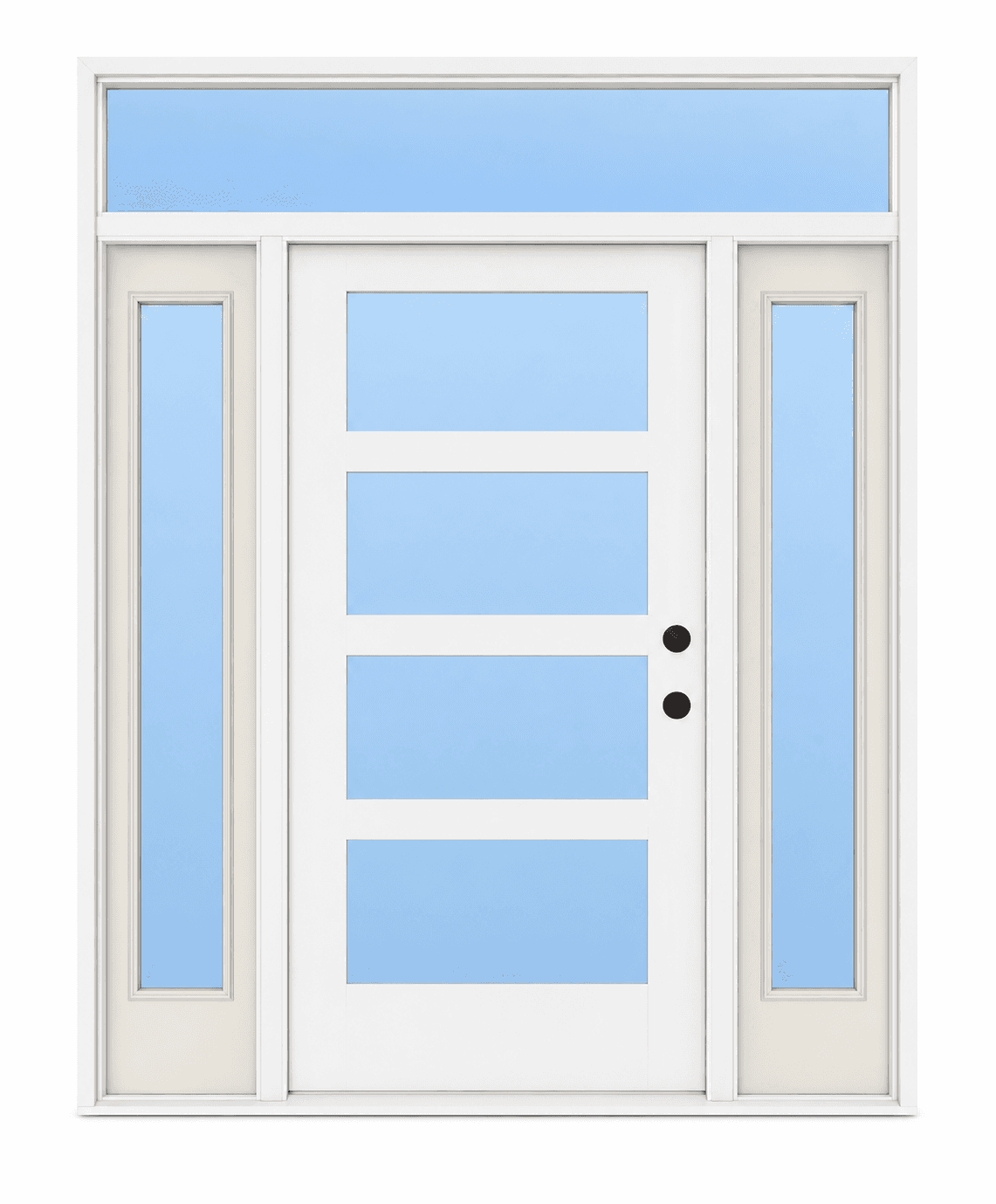

Charlevoix Transom & Sidelites White

HarborGate 4-Lite Contemporary Entry

Charlevoix

Model 1.1

Four stacked horizontal lites, full-lite sidelites, and a full-width transom — the modern-farmhouse front entry.

Named for the Lake Michigan harbor town, the Charlevoix is the most contemporary door in the HarborGate line: four equal horizontal lites of Low-E insulated glass stacked down the slab, flanked by a pair of 14-inch full-lite sidelites and capped with a full-width transom. It ships as one complete prehung entry system — slab, sidelites, and transom hung in a single primed PVC jamb — factory-painted White or Black, with a black 7⅝-inch threshold and black ball-bearing hinges. Double-bore prep with a 2¾-inch backset accepts any HarborForge handleset or smart deadbolt straight out of the box.

Prehung Entry DoorTransom + Sidelites

Configuration: Transom & Sidelites (1.1)

Color: White

2 available

Swatches and finishes shown are representative — actual color and texture may vary slightly. Request a sample to confirm before final selection.

See It in Your Space

Currently shown in White — Transom & Sidelites configuration — change the configuration or color above to see other options.

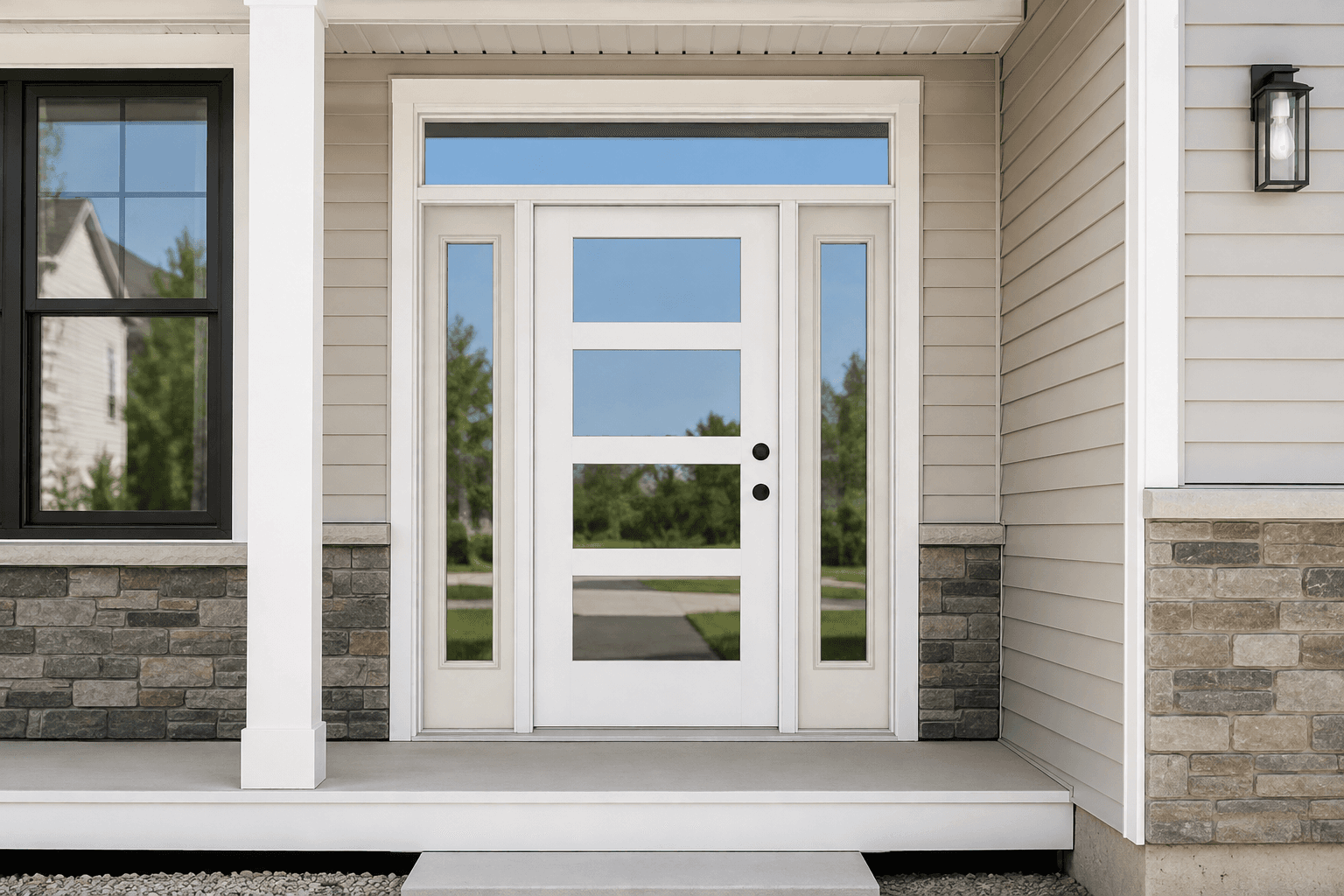

Charlevoix Transom & Sidelites installed in White

Built for Performance. Designed for Life.

Four Equal Horizontal Lites

The lites are sized and spaced evenly down the slab, so the door reads as a clean grid from the street rather than a window cut into a panel.

Entry System or Door Only

Slab, two 14″ sidelites, and transom arrive assembled in one jamb — a single unit to set, not three openings to align. Or order the same door alone, prehung in its own jamb.

Charlevoix Specifications

ConfigurationEntry system — door slab, two 14″ full-lite sidelites, full-width transom, one jamb — or door only, the slab prehung in its own jamb
Entry System GlassLow-E insulated clear glass — four horizontal lites in the slab, full-lite sidelites, transom
Door-Only GlassClear insulated glass — four horizontal lites
CorePolyurethane foam
Bore PrepDouble bore — 2⅛″ dia., 5½″ spacing, 2¾″ backset; mortised edge latch prep, deadbolt prep, 1″ × 2¼″ strike prep
Door Slab36″ W × 80″ H × 1¾″ thick
Construction2 mm fiberglass skin on both faces over a PVC + LVL stile-and-rail frame
FinishFactory-painted — White (RAL 9003) or Black (RAL 9005)
HingesBall-bearing, black
JambPrimed PVC, 6-9/16″ depth
Threshold & Sill7⅝″ black threshold, adjustable mill-finish sill with dark cap
WeatherstripCompression
SwingLeft-hand or right-hand inswing
Brick MoldOptional 2″ PVC brick mold
PackagingPrehung unit, cartoned
