Siding & Trim

Siding & Trim Collection

Siding & Trim

Aluminum Fascia, Soffit, F-Channel & Starter Strip

Builder-Grade Material

Finish-Matched to the Lineup

Project-Ready Lengths

Siding & Trim

The Siding & Trim Collection

Aluminum trim coil and accessories that finish a clean residential siding install. Pre-bent fascia covers nominal 1×6 wood fascia board, vented soffit ties into the soffit-to-ridge ventilation pair, F-channel receives the soffit at the wall, and starter strip sets a level reference for the first siding course.

Builder-Grade Material

Aluminum trim coil, galvanized steel, and engineered membranes. Honest gauges, honest specs.

Finish-Matched to the Lineup

Black and White on every aluminum profile so your fascia, soffit, drip edge, and F-channel read as one system.

Project-Ready Lengths

Standard 10' and 12' lengths sized for residential framing. Coil nails ship by the carton, membranes by the roll.

Siding & Trim

Four Distinctive Designs

Every model in the collection is built to the same rigorous construction standard — choose the silhouette that fits your space.

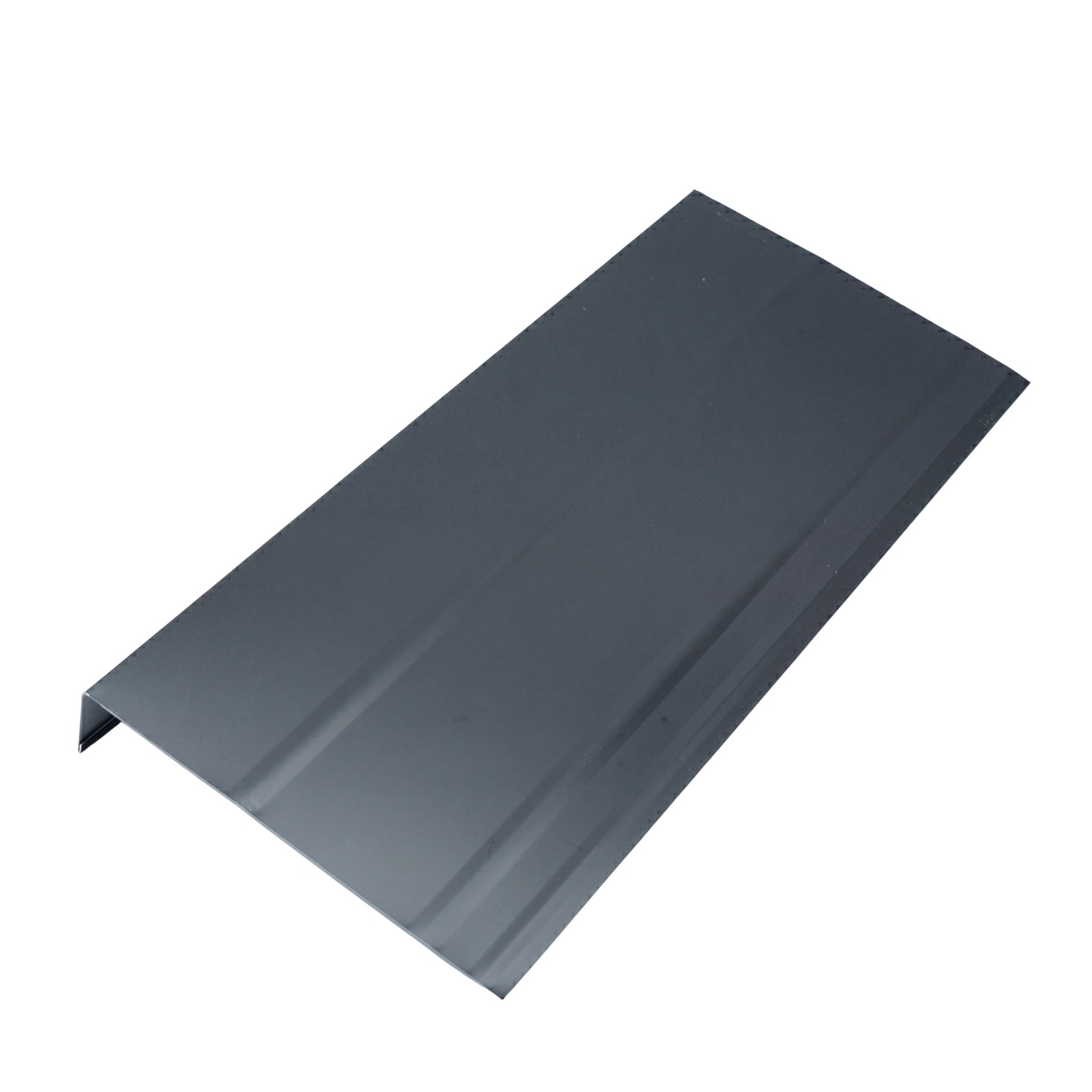

Aluminum Fascia

1″ × 6″ × 12′

Siding Accessory · 1×6″ × 12′ · .020″

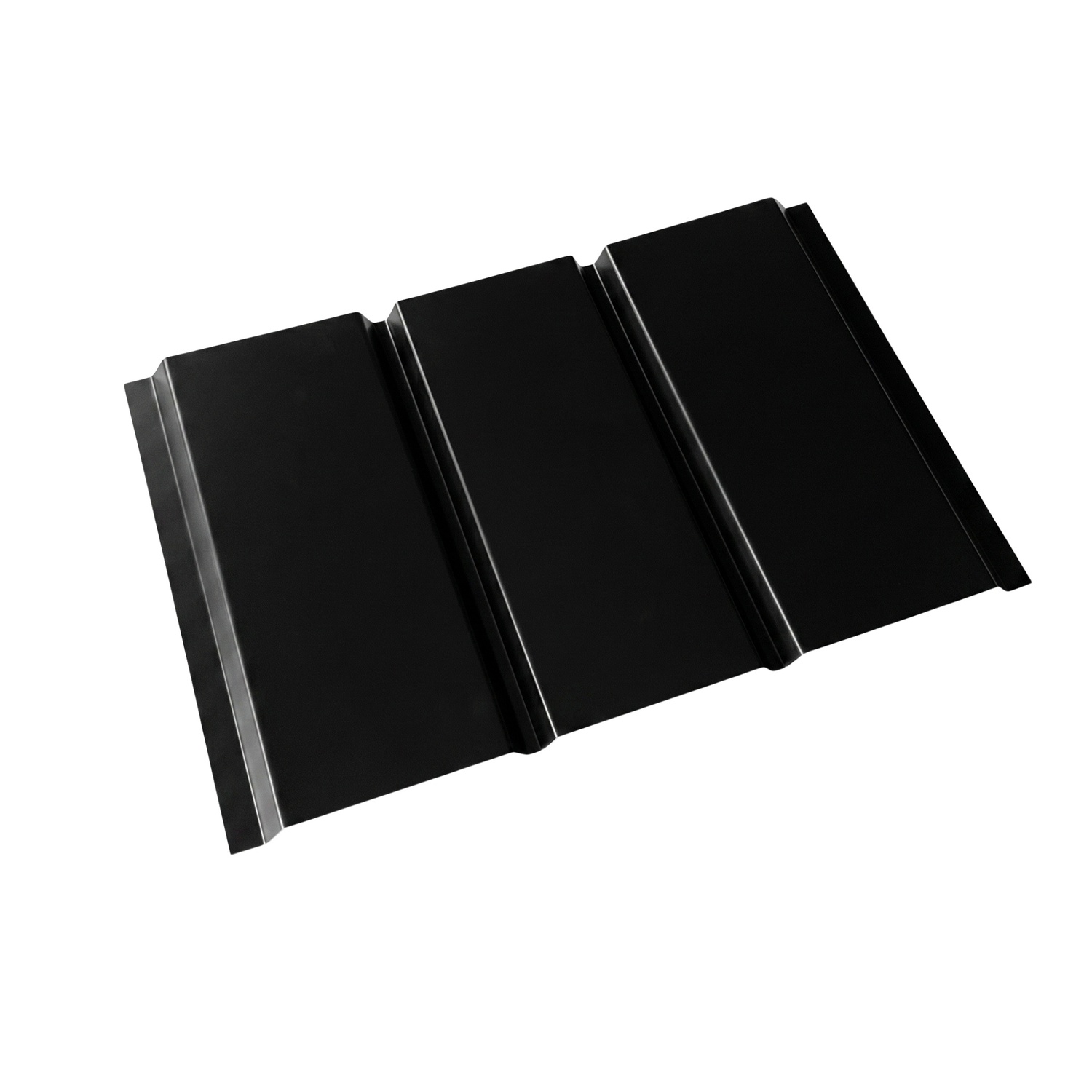

Aluminum Soffit

12″ × 12′ Vented Panels

Siding Accessory · 12″ × 12′

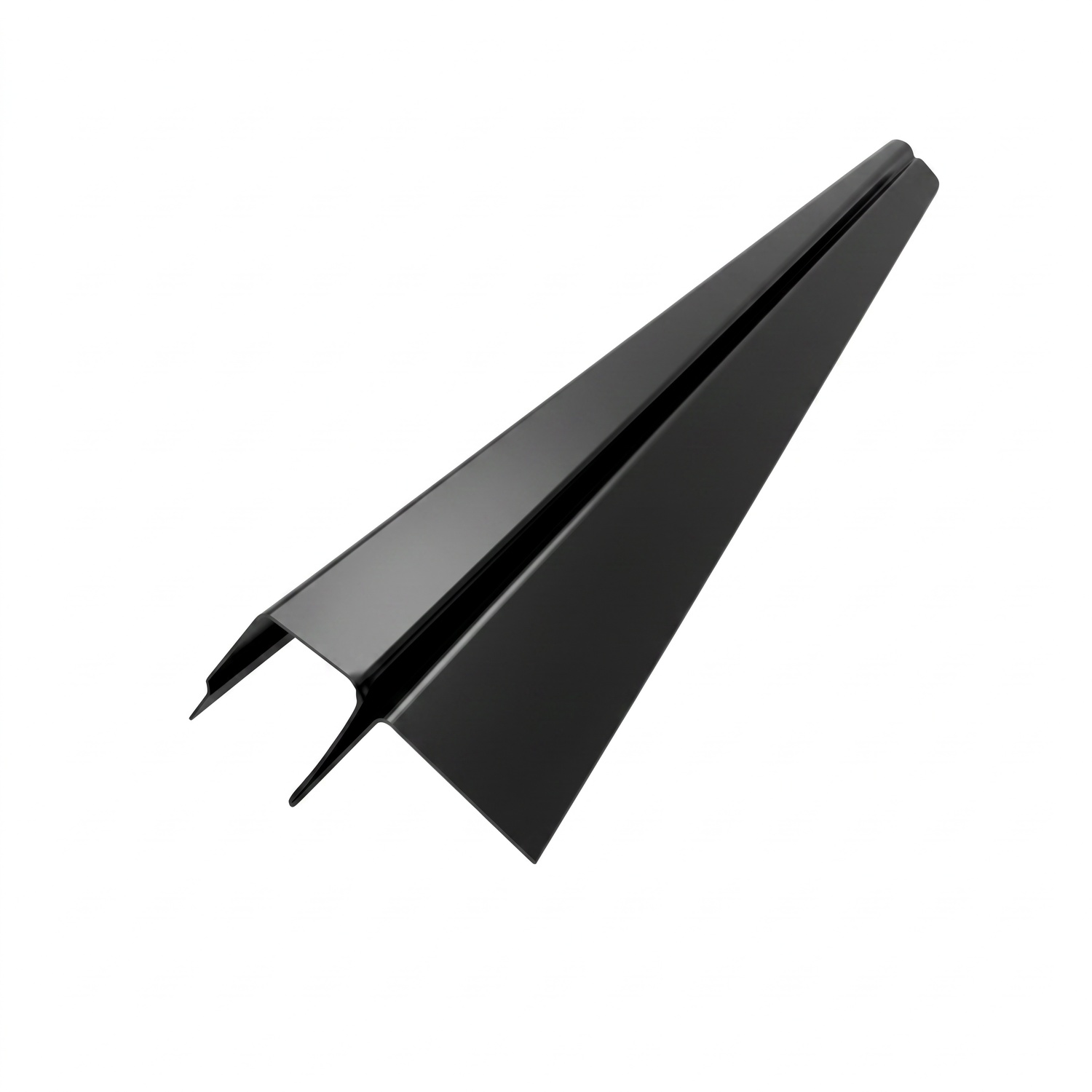

Aluminum F Channel

18mm × 28mm × 10′

Siding Accessory · 10′ · .016″

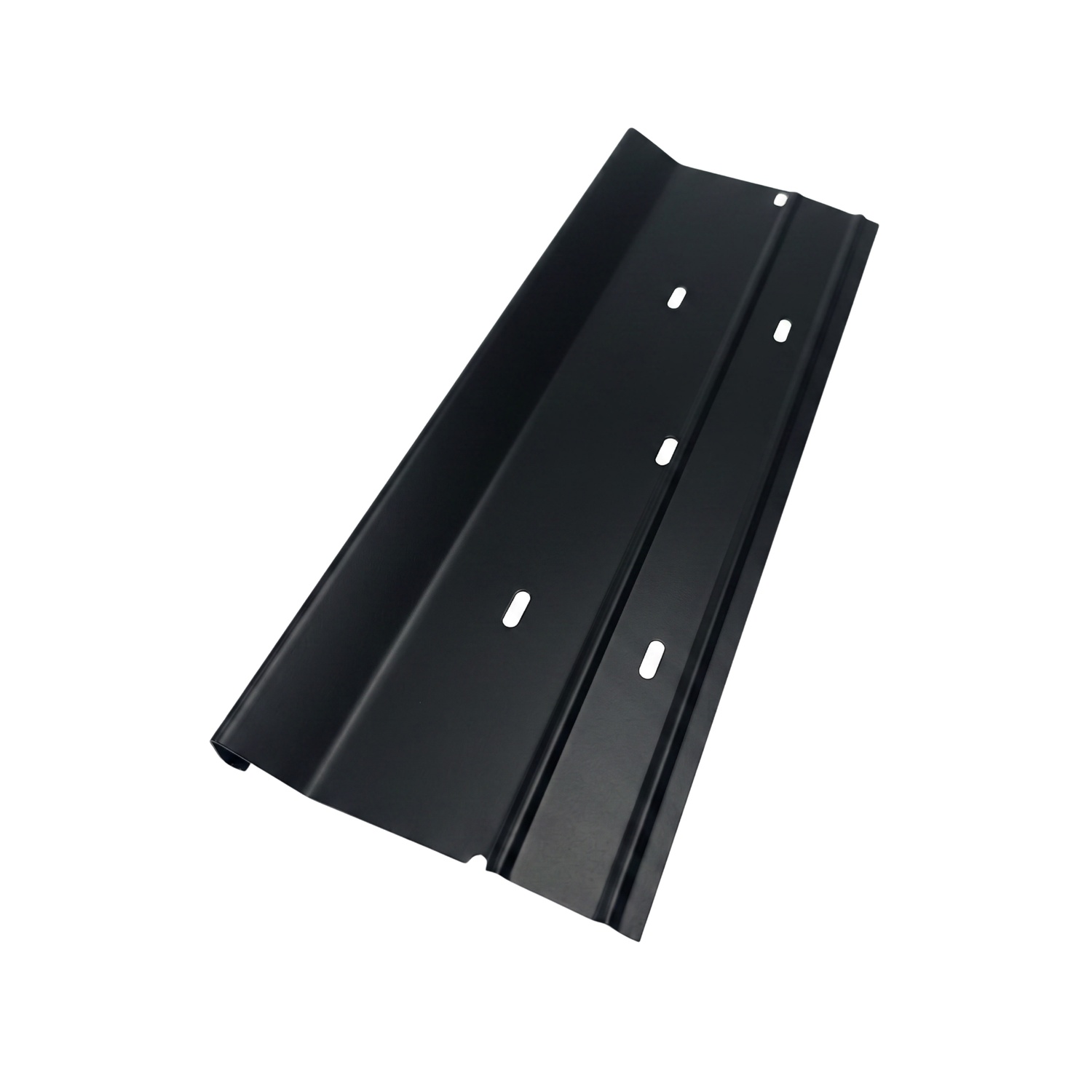

Metal Starter Strip

3¾″ × 10′

Siding Accessory · 10′ · .015″

Siding & Trim

Finishes & Specifications

Shared Technical Specifications

Profile1″ top return × 6″ face

Length12 feet per piece

MaterialAluminum trim coil

Thickness0.5mm (~.020″)

FinishPainted aluminum — Black or White

Compatible fascia boardNominal 1×6 wood fascia (¾″ × 5½″ actual)

Lap2" minimum at end-laps; expand-and-contract spacing on long runs

Use withAluminum soffit, F-channel, T drip edge

Siding & Trim

Warranty & Care Guide

Limited Warranty

Structural Warranty

Our building materials carry a limited warranty against manufacturing defect. Specific terms — duration, exclusions, and coverage tier — vary by product and by manufacturing partner. Contact us for product-specific warranty documentation before specifying for a project that requires written warranty terms.

Painted Finish Coverage

Finish Warranty

Painted aluminum trim coil is warrantied against checking, peeling, and chalking under normal residential exposure. Specific warranty period varies by SKU.

Coverage

✓Manufacturing defects

✓Material substitution

✓Painted-finish checking and peeling under normal residential exposure

Exclusions

✗Damage from improper installation or out-of-spec fasteners

✗Cosmetic surface damage incurred after delivery

✗Performance claims requiring third-party testing (ASTM, UL, etc.) — these are not currently warranted on our building-materials line

Care Guide

Storage Before Install

•Store trim coil and flashing flat, off the ground, under cover. Bowed coil resists straightening once it's taken a set.

•Keep underlayment and ice-and-water shield rolls on end (not laid flat) to prevent core distortion.

•Coil nails: keep in original cartons, indoors, until install. Field-stored cartons soak humidity and corrode prematurely.

Field Cuts and Edges

•Cut aluminum with aviation snips or a fine-tooth blade. Don't use abrasive cut-off wheels — heat discolors the paint at the cut.

•Cut galvanized steel with snips; seal the cut edge with zinc-rich primer in high-moisture exposure to prevent edge rust.

•Touch up scratches or scuffs on painted aluminum with matching color-matched paint before exposure to weather.
